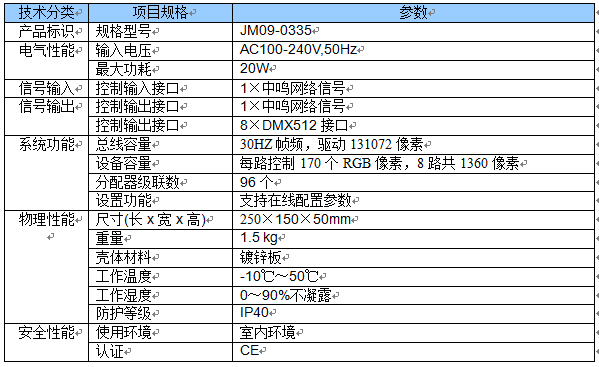

The dedicated network data output by the data processor is converted into standard DMX512 data received by LED lamps in large-scale lighting systems through a data distributor. Each data distributor can drive 170X8=1360 full color LED display units (lamps or pixels). The DMX512 data distributor has the following characteristics:
Support real-time video signal transmission through Zhongming dedicated network;
Support online function configuration and pixel mapping;
The maximum number of driving full color pixels reaches 1360 points;
The maximum refresh rate reaches 30 frames/second;
8-way standard DMX512 signal output, dedicated 5-core plug-in output interface;
Supports dedicated network cascading, with a maximum of 96 cascading connections.
